AS-12026-1 Smart Card Reader Support SIM Card and ATM

AS-12026-1 smart card reader works in wired USB cable. It support cards reading include SIM card, ATM card, etc.

ASTARIAS produce and offer military USB Smart Card Reader, USB Smart Card Reader, CAC Smart Card Reader

AS-12026-1 Smart card reader support ID card
* Host Interface: USB 2.0 CCID1 (also compliant with USB 1.1)
* Transmission Speed: 12 Mbps (USB 2.0 full speed)
* Standards: ISO 7816 & EMV2 2000 Level 1
* Protocols:  T=0, T=1,
2-wire: SLE 4432/42 (S=10),
3-wire: SLE 4418/28 (S=9),
I2C (S=8)
* Card Size: ID-1 (full-size)
* Smart Card Interface Speed: 420 Kbps (when supported by card)
* Smart Card clock frequency: Up to 5 MHZ
* Supported card types:  5V, 3V and 1.8V Smart Cards
ISO 7816 Class A, AB and C
* Power to Smart Card: 60Ma

AS-12026-1 Smart card reader support ID card

Smart card reader works in USB 2.0 receiver

Options:
* Customer specific logo or label: On request.
* Customer specific colors: On request.
PC/SC drive support
* Windows®/ME, 200/XP (32bit), 2003Sever
* Windows® CE5.0 (depending on hardware)
* Windows® Vista (32bit/64bit)
* Windows® 7
* Linux®

Reader could read Common Access CAC Smart Card

Smart card reader hardware specifications:
* 0º-55ºC / 32-131ºF
* 10-90% rH
* ABS
* 100 cm / 70.9″
* 100.000 insertions
* 500.000 hours

Smart card reader support SIM card reading

Smart card reader support SIM card reading

Packing:
* White box Packing Dimension / Weight: 176*123*46mm/100g
* Carton Dimension: 67*40*30cm
* Carton/pcs: 100pcs/ctn
* N.M: 10.5kg
* G.M: 12kg

And if you need to know distributor in your area, please contact us
AS-12026-1 Common Access CAC Smart Card Reader
Email: john@astarias.com

AS-12026-2 Military USB Common Access CAC Smart Card Reader

AS-12026-2 smart card reader works in wired USB cable. It support cards reading include ID card, SIM card, ATM card, etc.

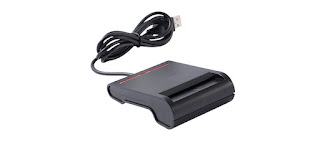

AS-12026-2 Smart Card Reader ID Card Reader 01

Support ID card reading
Host Interface: USB 2.0 CCID1 (also compliant with USB 1.1)
Transmission Speed:12 Mbps (USB 2.0 full speed)
Power Supply: Bus powered
Smart Card Interface
Standards: ISO 7816 & EMV2 2000 Level 1
Protocols: T=0, T=1
2-wire: SLE 4432/42(S=10),
3-wire: SLE 4418/28(S=9),
I2C (S=8)
Card Size: ID-1(full-size)
Smart Card Interface Speed: 420 Kbps(when supported by card)
Smart Card Clock Frequency: Up to 5 MHZ
Supported Card Types: 5V, 3V and 1.8V Smart Cards ISO 7816 Class A, AB and C
Power to Smart Card: 60 mA

Smart card reader with LED indicator

Other Features
Status Indicator: Dual color LED
Options
Customer Specific Logo or Label: On Request
Customer Specialist colors: On Request
Smart card reader support Windows and Linux system
PC/SC Driver Support
Windows® 98 / ME, 200 / XP (32bit), 2003 Server
Windows® CE 5.0 (depending on hardware)
Windows® Vista (32bit / 64bit)
Windows® 7
Linux®

Wired USB 2.0 for Smart card reader
Hardware Specifications
Operating temperature: 0º-55ºC / 32-131ºF
Operating humidity: 10-90% rH
Composition: ABS
Connector cable: 100 cm / 70.9″
Durability: 100.000 insertions
Meantime between failure (MTBF): 500.000 hours
Smart card reader support Windows system

Packing Detail (Blister Packing)
White box Packing Dimension / Weight: 195*149*65mm/115g
Carton Dimension: 67*40*34cm
Carton/pcs: 80pcs/Ctn
N.W.: 9.5KG
G.W.: 11.5KG

And if you need to know distributor in your area, please contact us
AS-12026-2 USB CAC Smart Card Reader Desk Version
Email: john@astarias.com

AS-12026-3 DOD Military USB Smart Card Reader Writer

AS-12026-3 smart card reader works in wired USB cable. It support cards reading include ID card, SIM card, ATM card, etc.

Smart ID card reader

Host Interface: USB 2.0 CCID1 (also compliant with USB 1.1)
Transmission Speed:12 Mbps (USB 2.0 full speed)
Power Supply: Bus powered
Smart Card Interface
Standards: ISO 7816 & EMV2 2000 Level 1
Protocols: T=0, T=1
2-wire: SLE 4432/42(S=10),
3-wire: SLE 4418/28(S=9),
I2C (S=8)
Card Size: ID-1(full-size)
Smart Card Interface Speed: 420 Kbps(when supported by card)
Smart Card Clock Frequency: Up to 5 MHZ
Supported Card Types: 5V, 3V and 1.8V Smart Cards ISO 7816 Class A, AB and C
Power to Smart Card: 60 mA
USB Smart Card Reader Support U.S. DOD Military

Other Features

• Status Indicator: Dual color LED
• Options
• Customer Specific Logo or Label: On Request
• Customer Specialist colors: On Request
• PC/SC Driver Support
• Windows® 98 / ME, 200 / XP (32bit), 2003 Server
• Windows® CE 5.0 (depending on hardware)
• Windows® Vista (32bit / 64bit)
• Windows® 7
• Linux®

• Smart card reader support ATM card
• Smart Card Reader Writer hardware Specifications
• Operating temperature: 0º-55ºC / 32-131ºF
• Operating humidity: 10-90% rH
• Composition: ABS
• Connector cable: 100 cm / 70.9″
• Durability: 100.000 insertions
• Meantime between failure (MTBF): 500.000 hours

Packing Detail (Blister Packing)
White box Packing Dimension / Weight: 195*149*65mm/115g
Carton Dimension: 67*40*34cm
Carton/pcs: 80pcs/Ctn
N.W.: 9.5KG
G.W.: 11.5KG

Smart Card Reader Could Print Customer LOGO
And if you need to know distributor in your area, please contact us
AS-12026-3 USB Smart Card Reader Writer
